TS 420 Petrol Cut-off Machine
Art.-NR. SA030117300
4.0 (26)
media-7ac718f9-89ec-433a-9e0b-be10654c723b
media-b7d64b99-9acd-4e76-8053-2f839bdbfd7c
media-7ac718f9-89ec-433a-9e0b-be10654c723b
media-b7d64b99-9acd-4e76-8053-2f839bdbfd7c
1.206,00 €

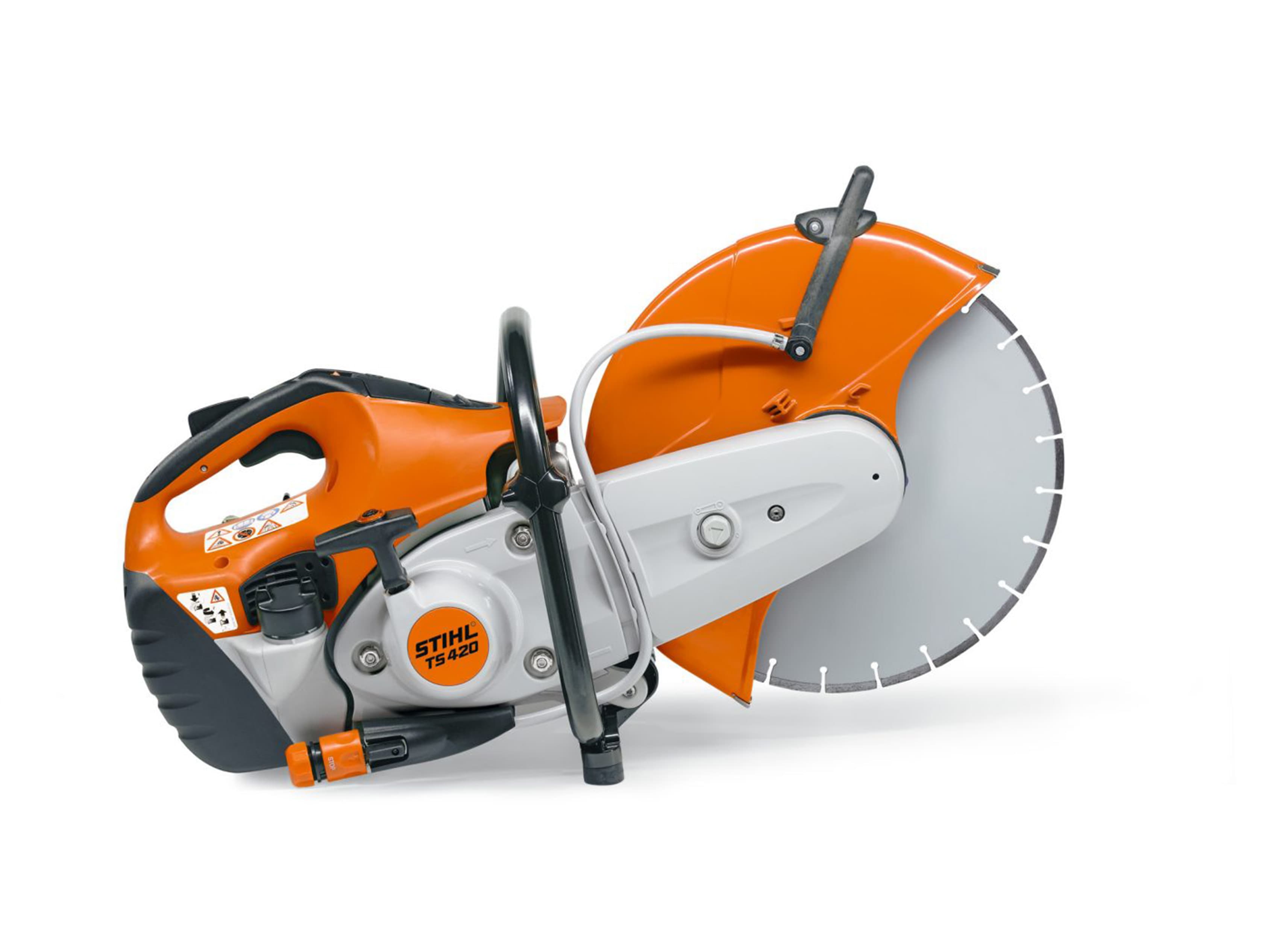

TS 420 Petrol Cut-off Machine: Compact and robust 3.2-kW cut-off machine (350mm cutting wheel)



Long-life filter system with cyclone pre-separation makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. For use with 350mm cutting wheel. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel.
Technical details
Displacement67 cm³
Engine power3.5 kW
Engine power4.4 HP
Weight9.7 kg
Sound pressure level98 dB(A)
Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

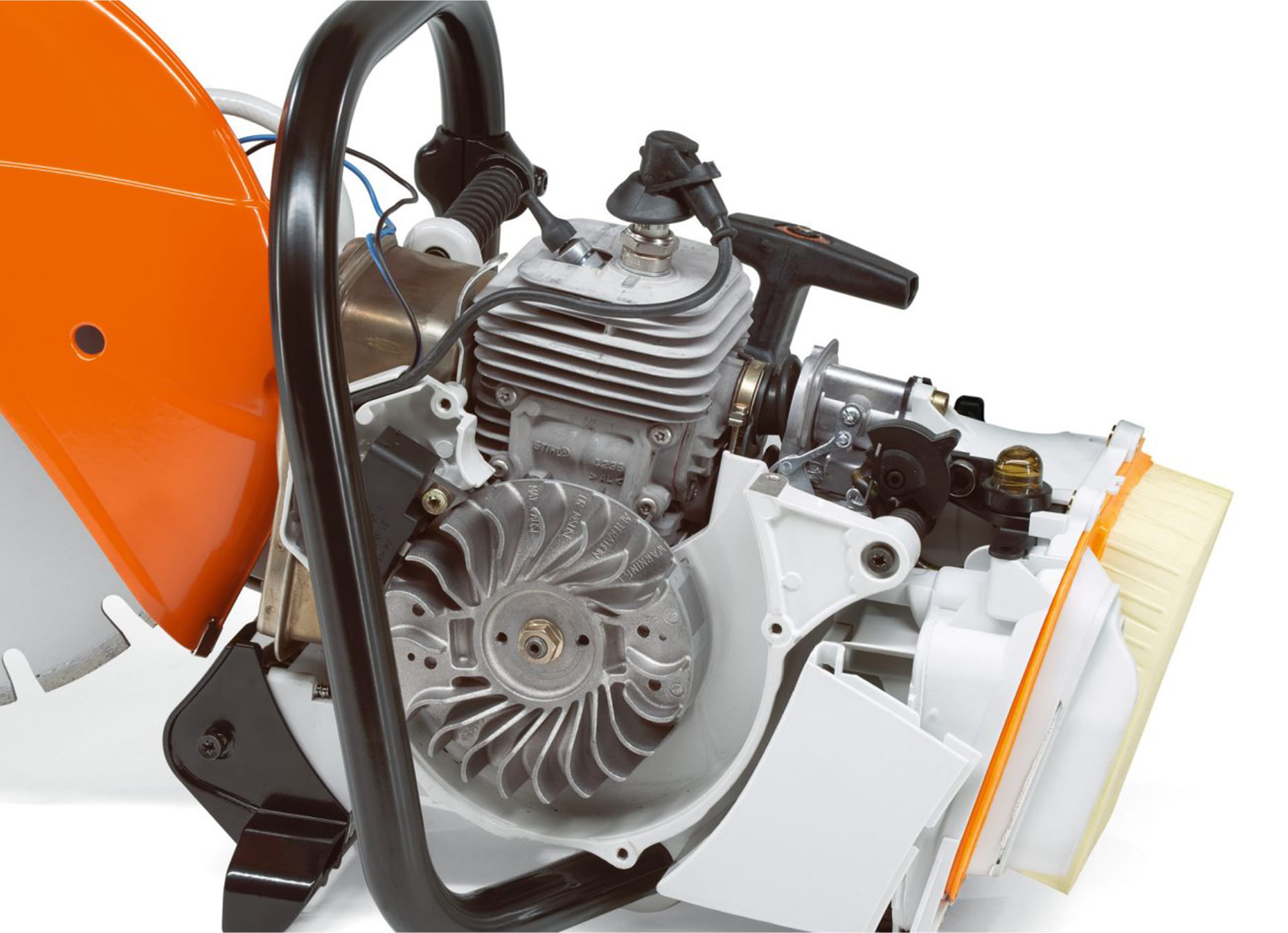

HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.

FOR FEWER STARTING STROKES. The manual fuel pump reduces the number of strokes required to start the tool, making the start-up process quicker and easier This is particularly helpful after longer breaks in operation. To use it, actuate the pump several times before starting. This will ensure that there is enough petrol in the carburettor when starting.

EFFORTLESS START-UP. The decompression valve makes it easier to start your tool. When starting, you can allow some of the compressed mixture to escape from the cylinder by opening the valve. This protects the start-up system and reduces the amount of force required on the starter cord.

FOR DUST BINDING AND COOLING. When working with your tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the tool, this rinsing is easy and permanently assured.

REDUCED MAINTENANCE. The compensator is a control system in the carburettor, which uses pressure compensation to ensure that engine performance, exhaust gas quality and fuel consumption remain virtually constant over a long period of time, despite increasing contamination of the air filter. You do not need to clean the air filter until there is a noticeable drop in performance. This means that you can work for a long time without maintenance.

STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems. Air drawn in is swirled. The larger, heavier particles are ejected. The pre-cleaned air is routed to the air filter via the pre-separator duct.

FOR MORE PLEASANT WORK. Vibrations can occur when you put your tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle area and therefore to your body. The result is that your tool is more comfortable to hold and your work is much less tiring.

FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.

Light, consistent re-tensioning increases the service life of the belts and shaft bearings.

COMPATIBLE WITH THE SMART CONNECTOR 2A. You can mount a Smart Connector 2 A in the housing of the power tool at the dedicated position. Once installed, this connects to the control unit and transmits valuable power tool data to your smartphone, tablet or the STIHL connected Box that is within range. You can use the STIHL connected App and the STIHL connected Portal to view the STIHL connected gathered data and benefit from additional functions.

FOR DUST BINDING AND COOLING. When working with your tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the tool, this rinsing is easy and permanently assured.

SPLASHWATER PROTECTION. The AP 200 S is IPX4 certified thanks to the encapsulated electronics and sealing of each individual cell. It means that the battery is protected against splashwater from all sides and can be used in rainy conditions.
