Battery Charging Cabinet
Full battery power for your municipality, landscaping company, or forestry business: The battery charging cabinet and the asecos charging cabinet make charging your entire battery fleet as easy as it is effective and safe.

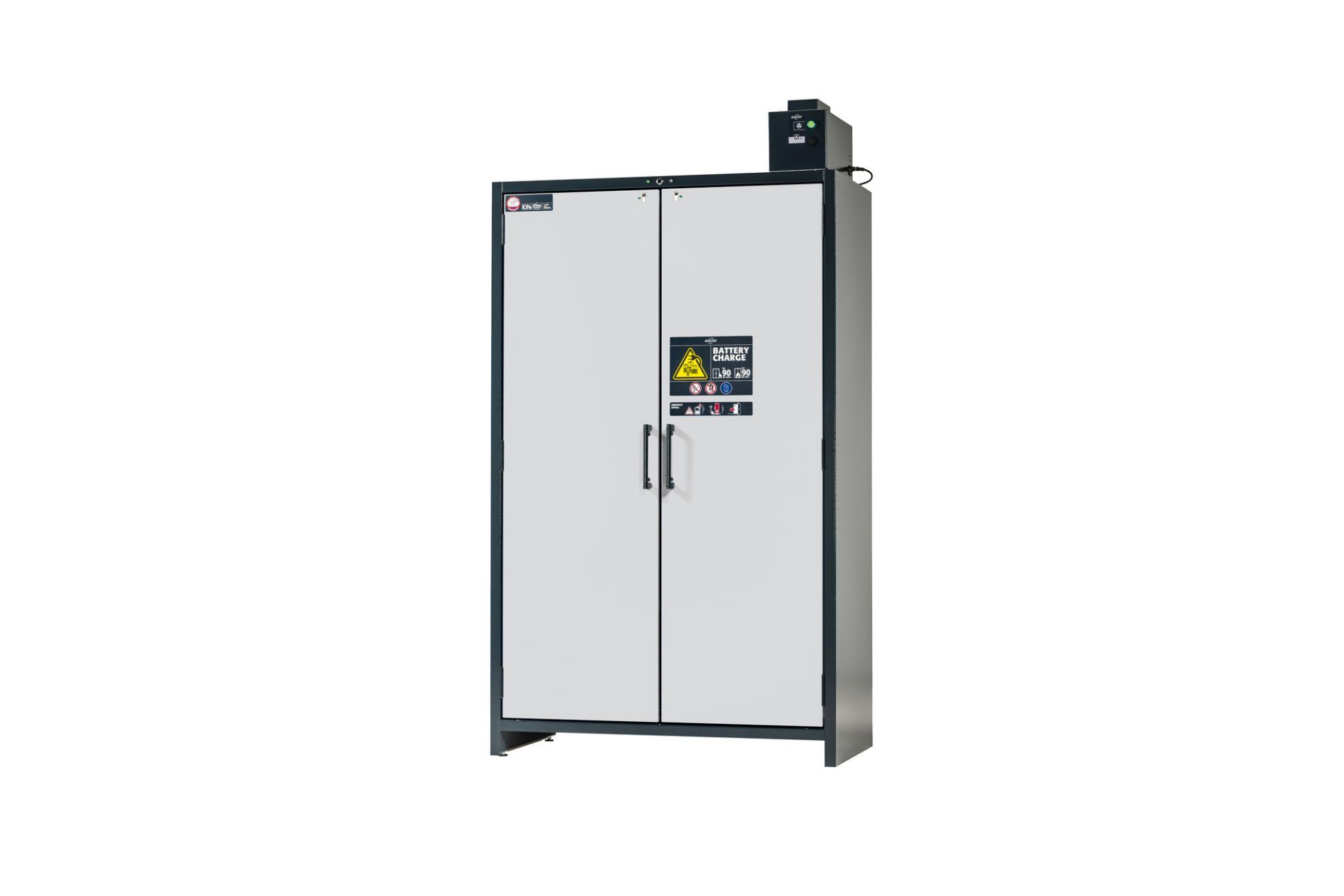

asecos Battery Charging Cabinet
Future-Oriented Storage and Charging of Batteries
In cooperation with asecos, STIHL offers two new battery charging cabinets. Available in two sizes, these cabinets meet technical standards for fire protection and fire resistance and come with an integrated warning system. Up to 16 or 32 batteries can be safely stored and reliably charged overnight using the 400-volt connection.

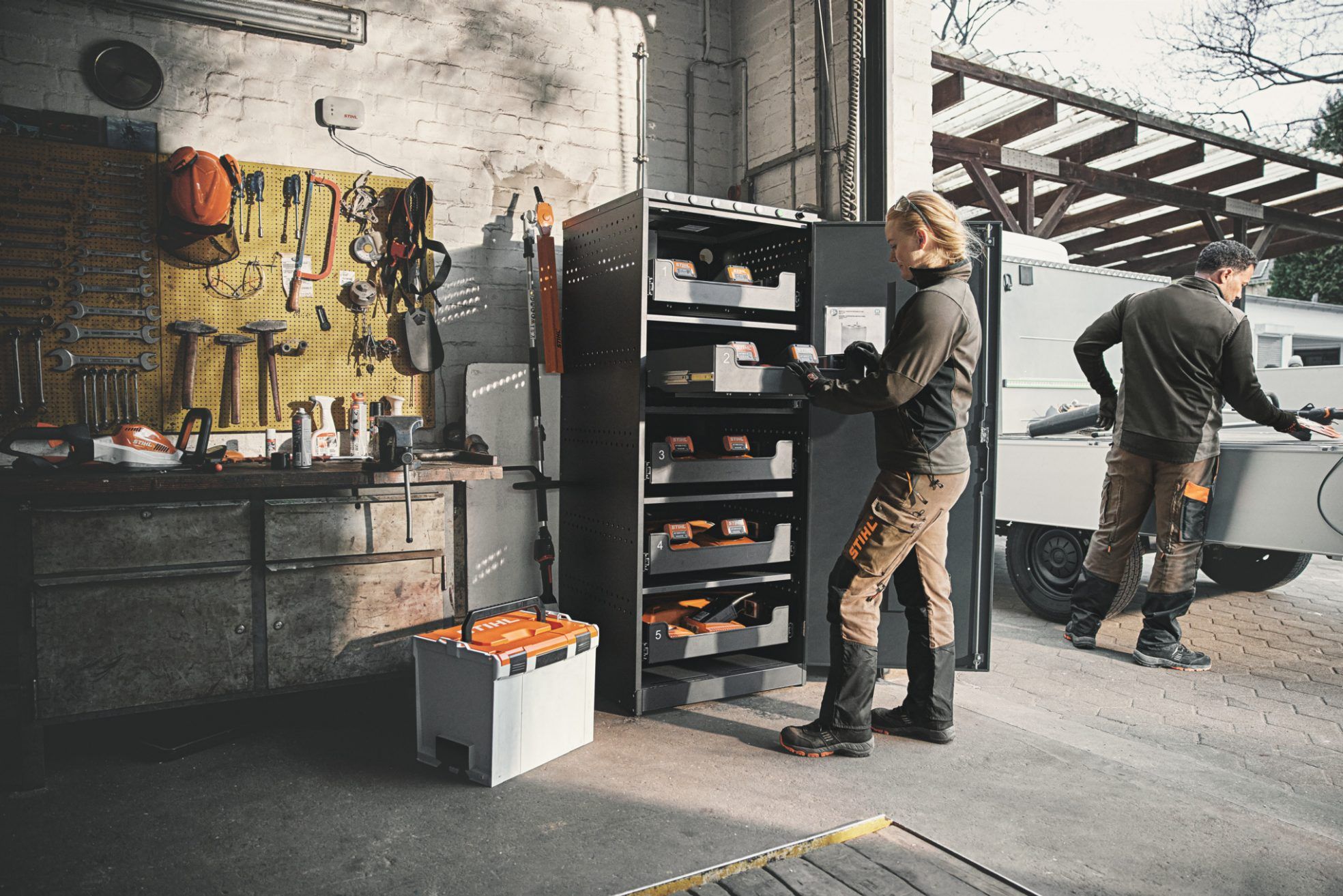

STIHL Battery Charging Cabinet
Get Started Now with Fast Charging Management

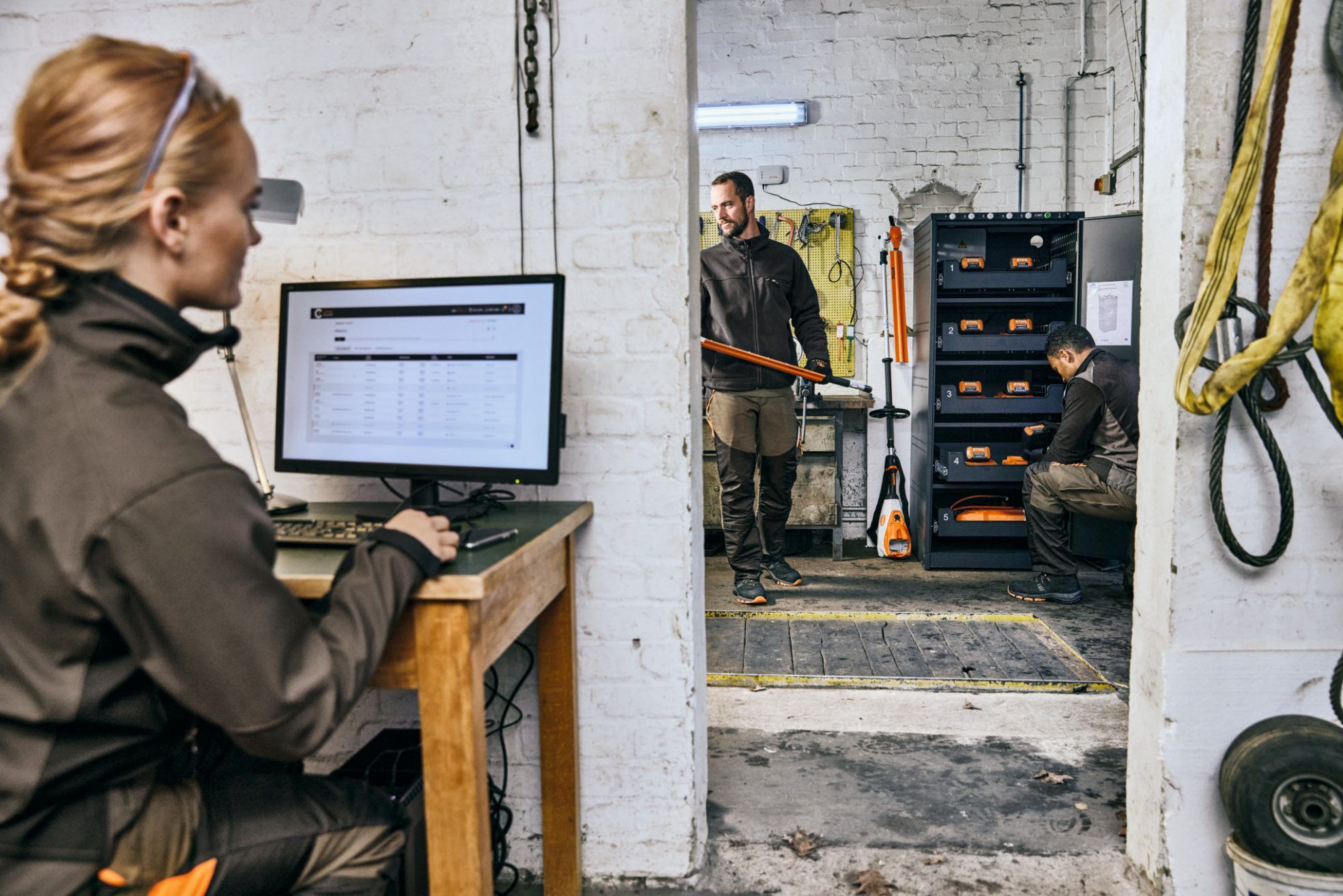

With the battery charging cabinet, you won’t need to worry in the morning about whether all batteries are fully charged. The cabinet independently manages the charging of all connected batteries so that work can start immediately.
More time and less organization when it really matters.
Advantages of the Battery Charging Cabinet
-
No Electrical Installation Needed
You can easily start using the battery charging cabinet without expert knowledge. Just plug it in, and charging can begin. -
Simultaneous Charging of Up to 20 Batteries

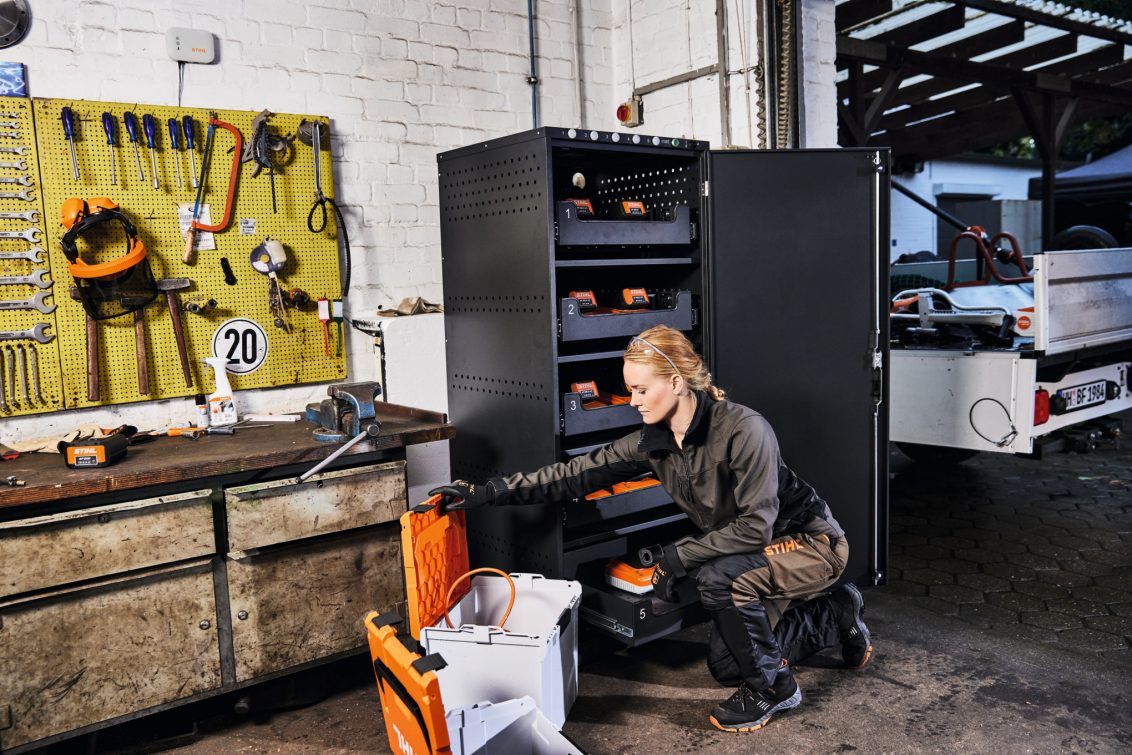

The charging cabinet has five drawers, each of which can hold a maximum of four STIHL AP batteries or one STIHL AR backpack battery. Existing STIHL chargers are easy to integrate. - Intelligent Charging Management
The charging cabinet’s control system monitors and manages the battery charging process cyclically. This ensures that all batteries in the cabinet are fully charged within 12 hours using a standard household connection (230V or 400V).
The battery charging cabinet is available exclusively at authorized STIHL dealers.
The charging cabinet can be operated without prior electrical installation or expert knowledge—simply plug it into a power outlet, and charging begins.
Up to 20 batteries can be charged simultaneously in the cabinet. It has five drawers, with each drawer able to accommodate up to four STIHL AP batteries or one STIHL AR backpack battery.
Key Details:
- Charging takes 12 hours to fully charge all batteries.
- The charging cabinet does not need to be fully loaded; it works with as few as one or two batteries, up to a maximum of 20.
- Only STIHL batteries (AS, AK, AP, AR) are approved for use with the cabinet.
Stationary Charging for Your Entire Battery Fleet
The charging cabinet autonomously and reliably handles the stationary charging of your entire battery fleet. You can easily set it up without expert knowledge. Simply plug it into a power outlet, and charging begins.
The cabinet has five drawers, each capable of holding up to four STIHL AP batteries or one STIHL AR backpack battery. Existing STIHL chargers can also be seamlessly integrated.

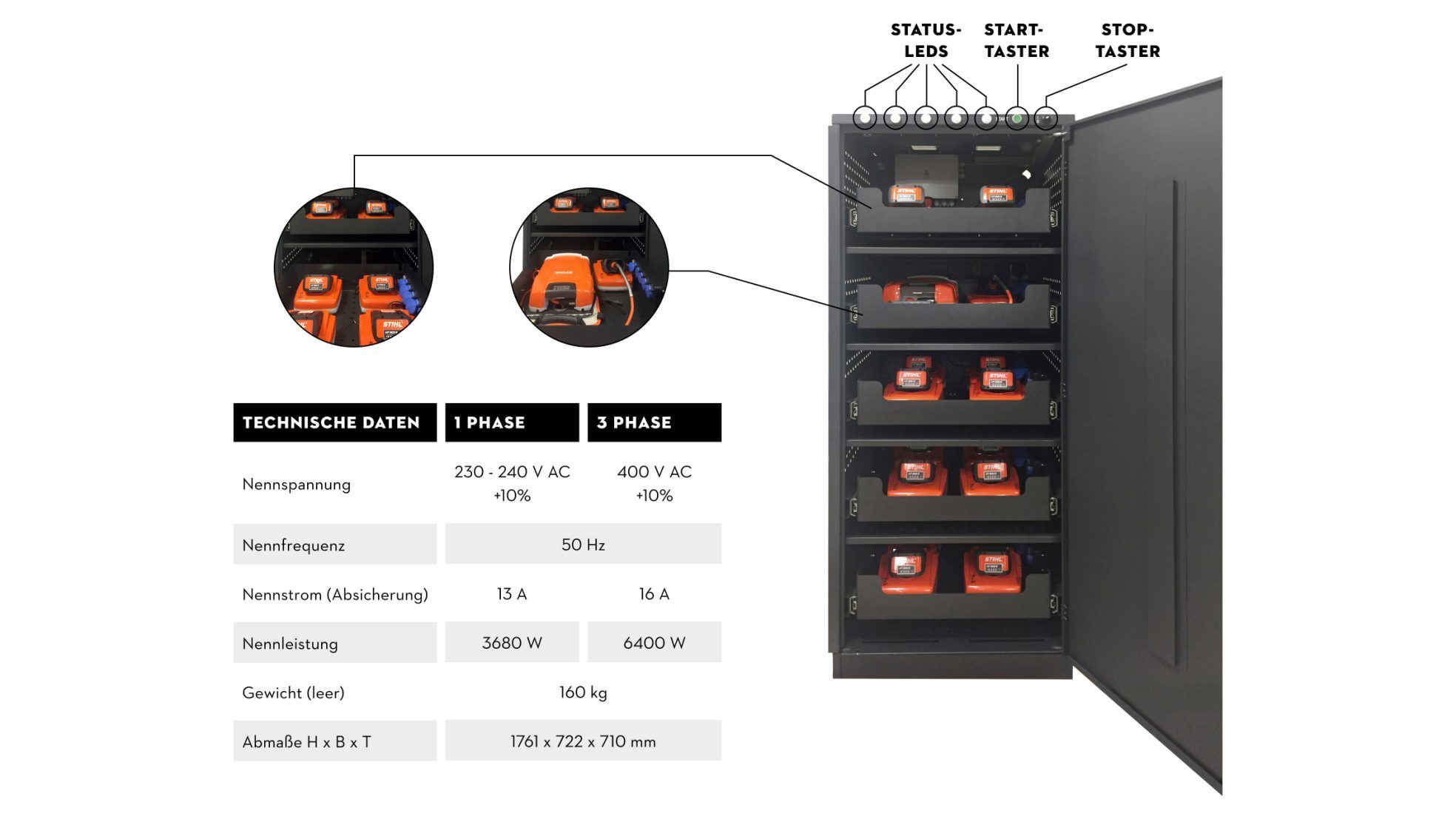

Technical Specifications
| Specification | 1 Phase | 3 Phase |
|---|---|---|
| Nominal Voltage | 230–240 V AC + 10% | 400 V AC + 10% |
| Nominal Frequency | 50 Hz | 50 Hz |
| Nominal Current (Fuse) | 13 A | 16 A |
| Nominal Power | 3680 W | 6400 W |
| Weight (empty) | 160 kg | 160 kg |
| Dimensions (H × W × D) | 1761 × 722 × 710 mm | 1761 × 722 × 710 mm |
The control system monitors and manages the battery charging process cyclically, ensuring that all batteries in the cabinet are fully charged in just 12 hours using a standard household connection (230V or 400V).
